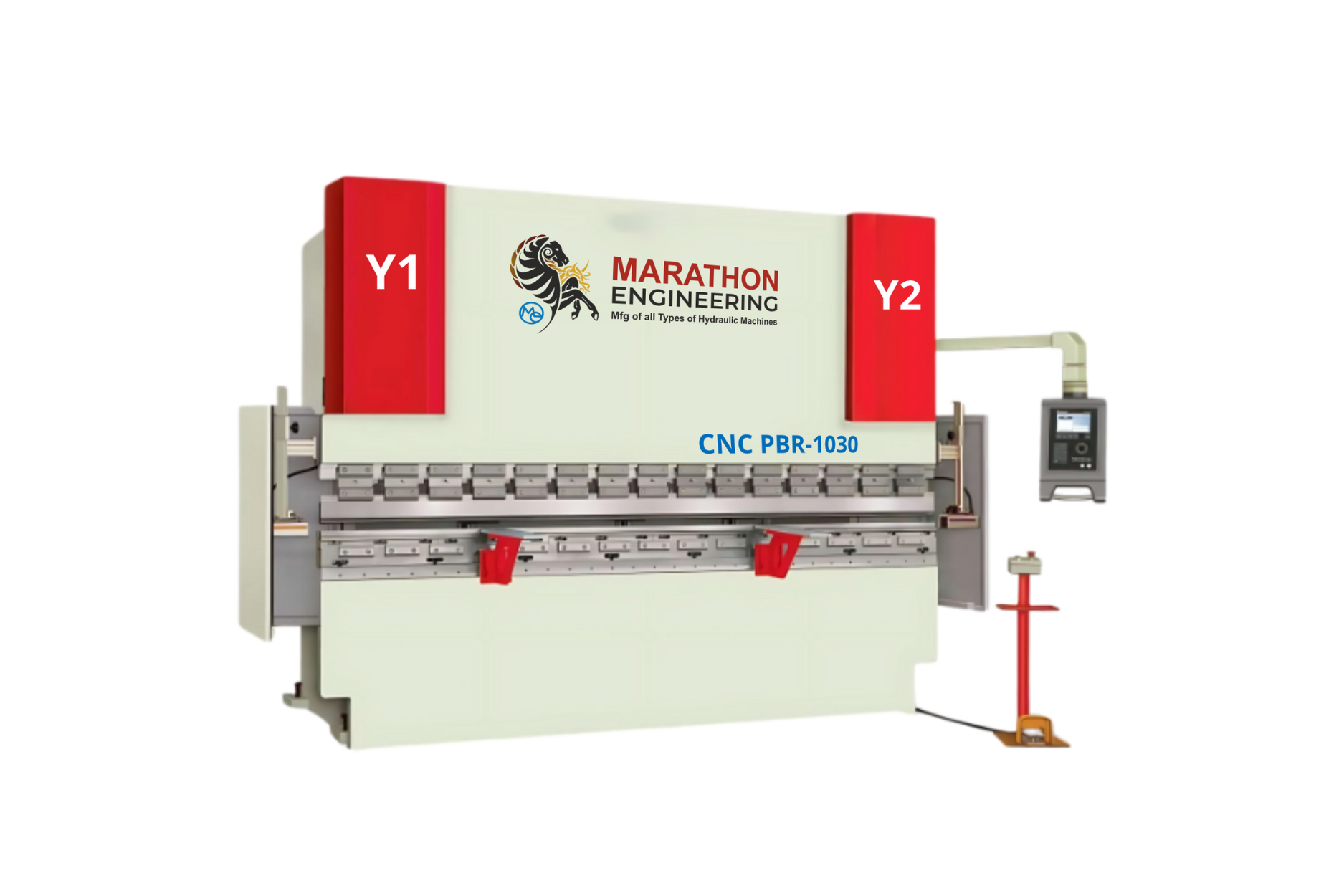

CNC Hydraulic Press Brake

The CNC Hydraulic Press Brake is a high-precision bending machine designed for efficiency and durability. Engineered with advanced Cybelec CNC controllers, it ensures automation, accuracy, and ease of operation. Featuring a servo motor-operated back gauge, HIWIN Taiwan ground ball screws, and a rigid welded steel frame, it delivers exceptional bending accuracy of ±0.1mm/mtr. With adjustable pressure control, synchronized cylinders, and flexible sheet support, it handles various materials like MS, SS, aluminum, brass, and copper. Available in multiple models with bending lengths from 1500mm to 6000mm and thicknesses up to 25mm, this machine is built for high productivity and low operational costs.

CNC Hydraulic Press Brake

We are widely recognized manufacturers, suppliers, exporters, distributors, and providers of Hydraulic CNC/NC Press Brake machines. These machines help reduce operational costs while ensuring high precision, automation, and efficiency. Manufactured using the latest Cybelec CNC/NC technology, our press brakes are equipped with advanced features, making them durable, efficient, and easy to use. We offer them at competitive prices with various standard and optional features.

CNC Features

User-Friendly Interface – Cybelec 6 to 8 Series Dedicated Controller with excellent readability.
Smart Programming – EasyBend page, 200/50 programs, 24/12 sequences per program.
Advanced Axis Control – Setup wizards for X, Y, R, Z-axis back gauge and beam adjustments.
Automated Operations – Automatic management of bending angle and bending length.
High-Precision Components – HIWIN Taiwan ground ball screws and servo motor-operated back gauge for real-time stop.

Available Models

Bending Length (MM): 1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 6000
Material Compatibility: MS / SS / Aluminium / Brass / Copper
Accuracy: ± 0.1MM / MTR
Thickness (MM): 2 / 3 / 4 / 6 / 8 / 10 / 13 / 16 / 20 / 25
Back Gauge Length: 450mm / 650mm (or as per requirement)

Design Feature

Sturdy Construction – Accurate right-angle welded steel frame for precise bending.
Precision Control – Five-piece guide sliding device ensures accurate vertical RAM movement.
Efficient Operation – Adjustable pressure relief valve for high-tensile materials.
Low Maintenance – Hardened pins and bushes reduce wear and tear.
Enhanced Safety – Emergency stop switch with a movable console for motor & RAM control.
Lubrication System – Centralized hand-pump lubrication for all key joints.
High Performance – Synchronized cylinders distribute vertical force evenly.

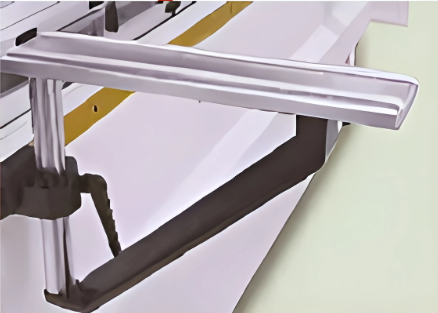

Flexible Support – Adjustable sheet support for longer & heavier plates.

Standard Accessories Included

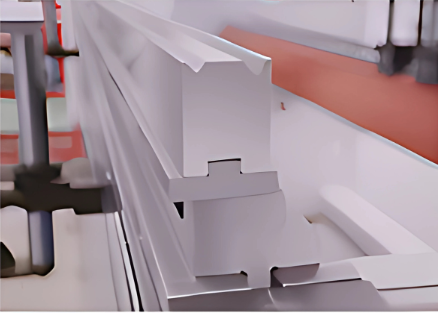

Blade & Block pre-installed.
Operator Console & Foot Switch for easy operation.
Sheet Support System for handling longer and heavier plates.
