A powerful and efficient baler machine designed for compressing cardboard, paper, and carton boxes. With a 50-ton pressure capacity, it produces bales weighing 150-200 kg in just 10-15 minutes per cycle. Equipped with a double pump system, swing plate eject system, and hand lever operation, this machine ensures smooth performance and optimal productivity. Ideal for industrial waste management needs.

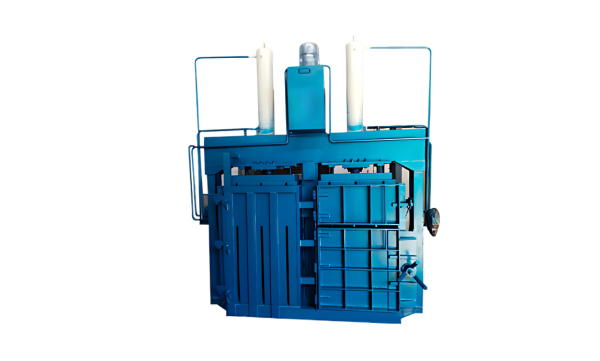

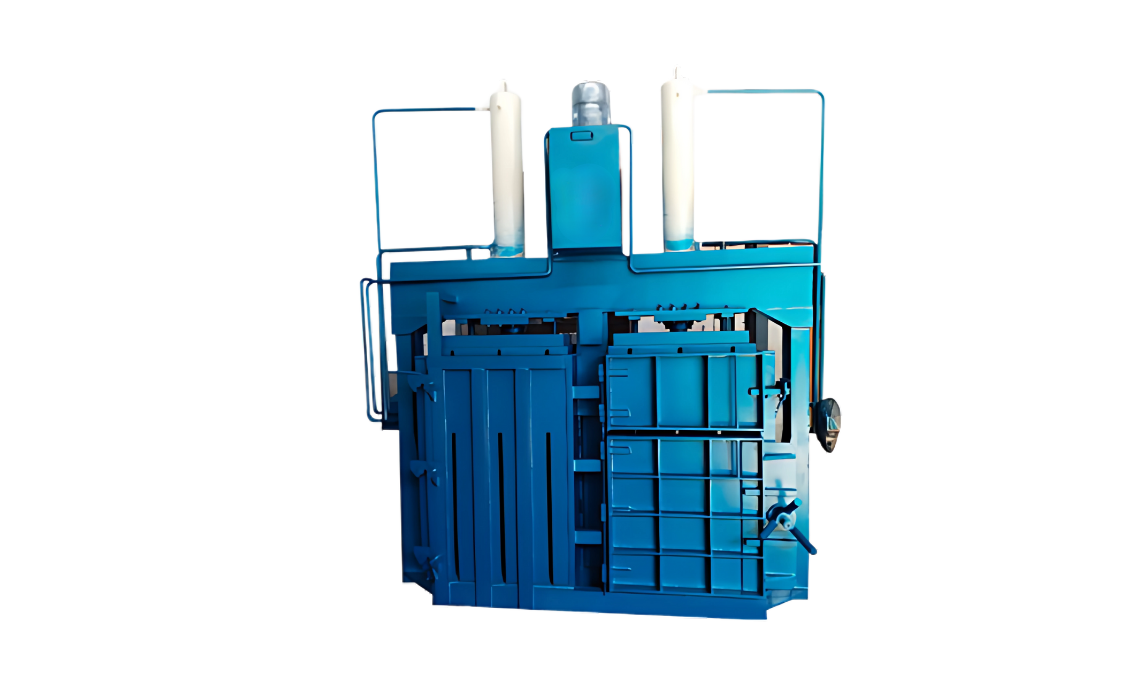

Double Box Double Cylinder Paper Baler
Specifications:
Capacity: 50 Ton Pressure Capacity (Double Chamber, Double Cylinder Baler Machine)
Bale Size: 34(L) x 26(W) inches
Bale Weight: 150 to 200 kg
Chamber Size: 34(L) x 26(W) x 54(H) inches
Structural Details:
Number of Cylinders: 2 Nos.
Number of Ties: 3 Nos.
Number of Doors: 4 Nos.
Cylinder Size: 170(Bore) x 195(OD) x 105(Ram) x 1100(Stroke) mm
Bale Eject System: Swing Plate
System & Operations:
Oil Tank Capacity: 300 liters
Production Rates: 10 to 15 minutes per cycle
Hydraulic System: Double Pump System
Day Light Gap: 54 inches
Operation: Hand Lever Operated System
Electrical Details:
Electric Motor: 10 HP Motor, 3-phase, 1440 RPM, 50 Hz
Additional Information:
Delivery Time: 25 working days
Overall Dimension: 120(L) x 36(W) x 130(H) inches
Body Plate Thickness: 8mm, 10mm, 30mm
Usage/Application: Cardboard, Paper, Carton Box
