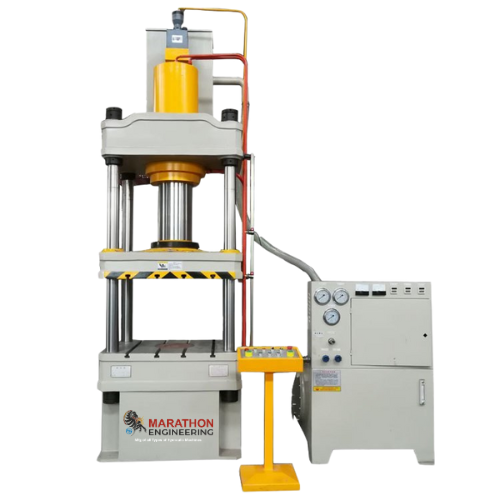

Hydraulic Forming Press Machine, used for metalworking applications such as deep drawing, stamping, and pressing. It outlines design features, available models, and the hydraulic system. Key details include motor power (7 HP to 80 HP), work table size (500 mm × 500 mm to 2000 mm × 2000 mm), safety features, and control systems (PLC/CNC with touchscreen or HMI). The machine is designed for precision, efficiency, and safety in kitchen sink manufacturing and other metal shaping applications.
Designed for metalworking processes such as deep drawing, stamping, and pressing. Ideal for manufacturing kitchen sinks, automotive and aerospace components, compacting, and shaping metals.
Available in Single, Double, or Three Cylinder configurations.
Accurate clearance between RAM and TABLE plate.
Adjustable Pressure Relief & Controlling Valve for high-tensile (HT) material.
| Specification | Details |
|---|---|
| Machine Capacity | 100MT to 1200MT & More |
| Table Size | As per requirement |
Customized Hydraulic System based on pump type, hydraulic fluid capacity, maximum operating pressure, hydraulic cylinder, and control valve.
Motor Power: 7 HP to 80 HP
Power Supply: 380V – 415V, 50Hz/60Hz
Work Table Size: 500 mm × 500 mm to 2000 mm × 2000 mm
Distance Between Pillars: 500 mm to 2000 mm
Safety Guards & Overload Protection
Pressure Relief Valves & Limit Switches to prevent excessive ram stroke or unintended operation
PLC-based or CNC system for high-precision control.
Touchscreen or HMI for user-friendly operation.
