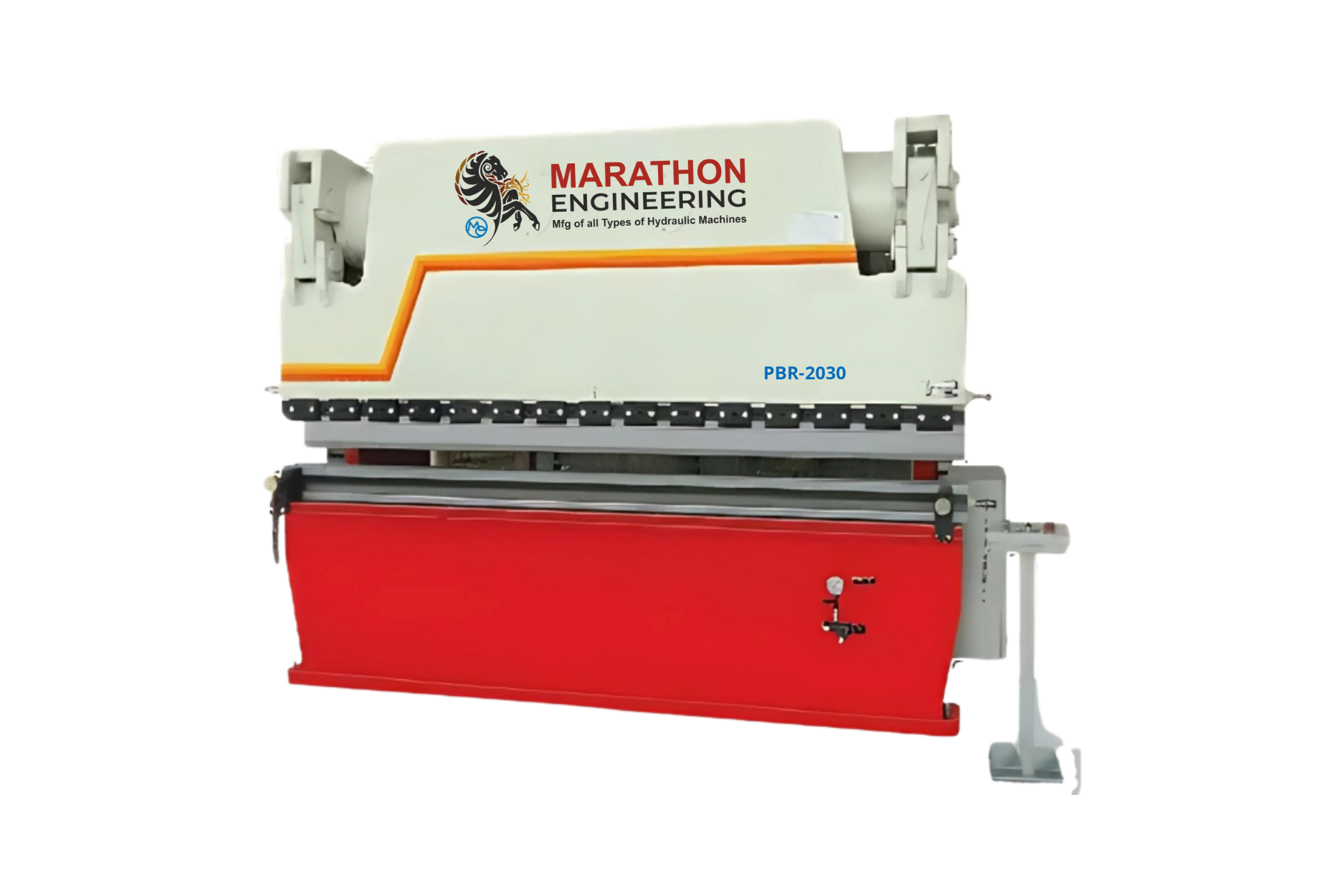

Hydraulic Press Brakes Machine

The Hydraulic Bending Machine is a durable and precise tool designed for accurate bending. Its mono block welded steel frame and ultra-tested 2062 steel plates ensure rigidity, while hardened pivots and a five-piece guide slide offer precision within ± 0.03 mm. The machine features multi-cycle operations (Inch, Single Cycle, Auto), adjustable bending force, and a movable operator console for easy control. With standard features like a manual back gauge, lifting chains, and a bending chart, it also offers optional upgrades such as motorized back gauges and automatic lubrication, making it ideal for industrial applications.

Hydraulic Press Brakes Machine – Features and Specifications

Design Features:

Mono Block Welded Steel Frame: Ultra-tested 2062 steel plates ensure rigidity for accurate bending.
Pivots & Slide: Hardened ground pin bushes with five-piece guide slide, lubricated by a central hand pump for smooth operation.
Precision Accuracy: Repetitive accuracy within ± 0.03 mm.
Ram Travel Parallelism: Operates without sensitive and complex servo hydraulics.
Reliable Hydraulic Components: High-quality sealing for 350 bar pressure, designed for 160 bar maximum operation.
Multi-Cycle Operation: Includes Inch, Single Cycle, and Auto cycles for improved convenience.
Three-Speed Operation: Reduces ideal travel time, enhancing productivity.
Adjustable Bending Force: Front adjustment for bending soft materials.

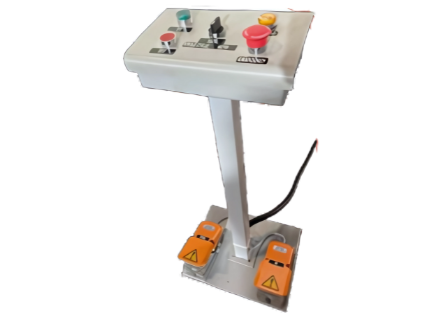

Operator Console: Movable console with switches for cycle selection, ram up/down travel, emergency stop, and motor on/off.

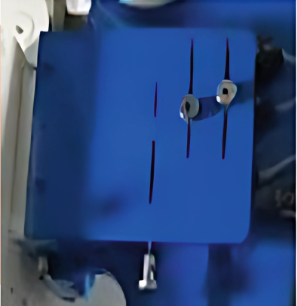

Manual Backstop: Micro-adjustable swing stop facilitates reverse bending.
Electrical Panels: Designed with internationally reputed brands for superior performance.

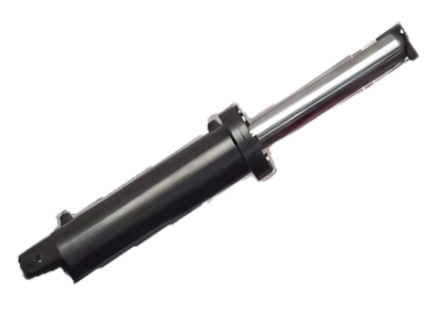

Cylinder Design: Precision-engineered cylinders ensure a long, trouble-free life. Seals can be replaced without dismantling the ram or using a crane.

Standard Features & Accessories:

Main Drive Motor: Standard motor for reliable operation.
Electrical Control Panel: Three-speed operation with Inch, Single Cycle, and Auto modes.
Two Front Sheet Supports: Provides additional stability during operation.
Manual Back Gauge: Micro-adjustment swing stoppers for precision.
Lifting Chains: Two pairs provided for easy handling.
Fine Stroke Adjustment Rod: With limit switches for better control.

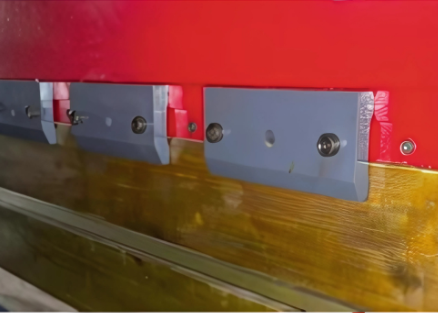

Die & Blade: One suitable 5-way die and blade (Segmented or Full-Length EN-9 not covered under warranty).
Movable Console: Emergency device included for enhanced safety.
Manual Centralized Lubrication: System with a hand pump for easy maintenance.
Bending Chart: A comprehensive guide for optimal performance.

Optional Accessories:

Motorized Back Gauge: With DRO (Digital Readout).
Extra Finger for Standard Back Gauge: For greater flexibility.
Automatic Lubrication System: For maintenance-free operation.
Extra Throat Depth: For more versatile bending capabilities.
NC Back Gauge: With ball screw (Schneider or Delta).
Color Touch Screen 7″: Provides intuitive interface and controls.

Technical Specifications:

Model	Tonnage	Table Length	Bending Capacity (In MS UTS 45kg/mm²)	Table Width	Clear Pass (mm)	Ram Stroke (mm)	Open Height (mm)	Throat Depth (mm)	Speed (mm/sec) (Approach/Pressing/Returning)	Power HP	Packing Dimensions (LxWxH) (mm)	Approx Weight (kg)
PBR215	20	1500	1.6×1500	2×1250	150	100	250	100	35-9-35	2	1700x1050x1900	1200
PBR320	30	2000	2×2000	3×1250	150	150	250	200	30-7-30	3	2200x1150x1900	2200
PBR425	40	2500	2.5×2500	3×1500	200	150	300	250	30-8-40	4	2700x1150x1900	2700
PBR515	50	1500	4×1500	5×1250	200	100	250	200	35-7-35	5	1700x1050x1900	2200
PBR520	50	2000	3×2000	4×1500	200	150	250	200	35-7-35	5	2200x1050x1900	2900
PBR525	50	2500	3×2500	4×2000	200	150	300	250	35-7-35	5	2700x1150x2000	3200
PBR625	65	2500	3×2500	4×2000	200	150	330	300	30-5-30	5	2700x1200x2000	3200
PBR630	65	3000	3.2×3000	4×2500	200	150	330	300	30-5-30	5	3350x1200x2000	4000
PBR825	80	2500	2.5×3000	5×2000	250	150	330	300	38-6-45	7.5	2700x1550x2300	4200
PBR830	80	3000	3×3000	5×2500	200	150	330	300	38-6-45	7.5	3350x1550x2300	4400
PBR1025	100	2500	3×2500	5×2000	200	150	330	300	38-6-45	7.5	2700x1550x2300	4600
PBR1030	100	3000	3×3000	5×2500	200	150	330	300	38-6-45	7.5	3350x1550x2300	5400
PBR1040	100	4050	4×3000	4×3000	250	200	325	300	38-6-45	7.5	4250x1650x2300	6000
PBR1225	125	2500	3×2500	5×2000	250	150	330	300	38-6-45	10	2750x1650x2500	6400
PBR1230	125	3000	3×3000	5×2500	250	150	330	300	38-6-45	10	3350x1650x2500	7400
PBR1240	125	4050	4×3000	5×3000	250	150	330	300	38-6-45	10	4200x1650x2500	7700
PBR1625	160	2500	4×2500	5×2000	250	200	330	300	35-6-40	12	3350x1800x2600	8200
PBR1630	160	3000	4×3000	5×2500	250	200	330	300	35-6-40	12	3350x1800x2600	8800
