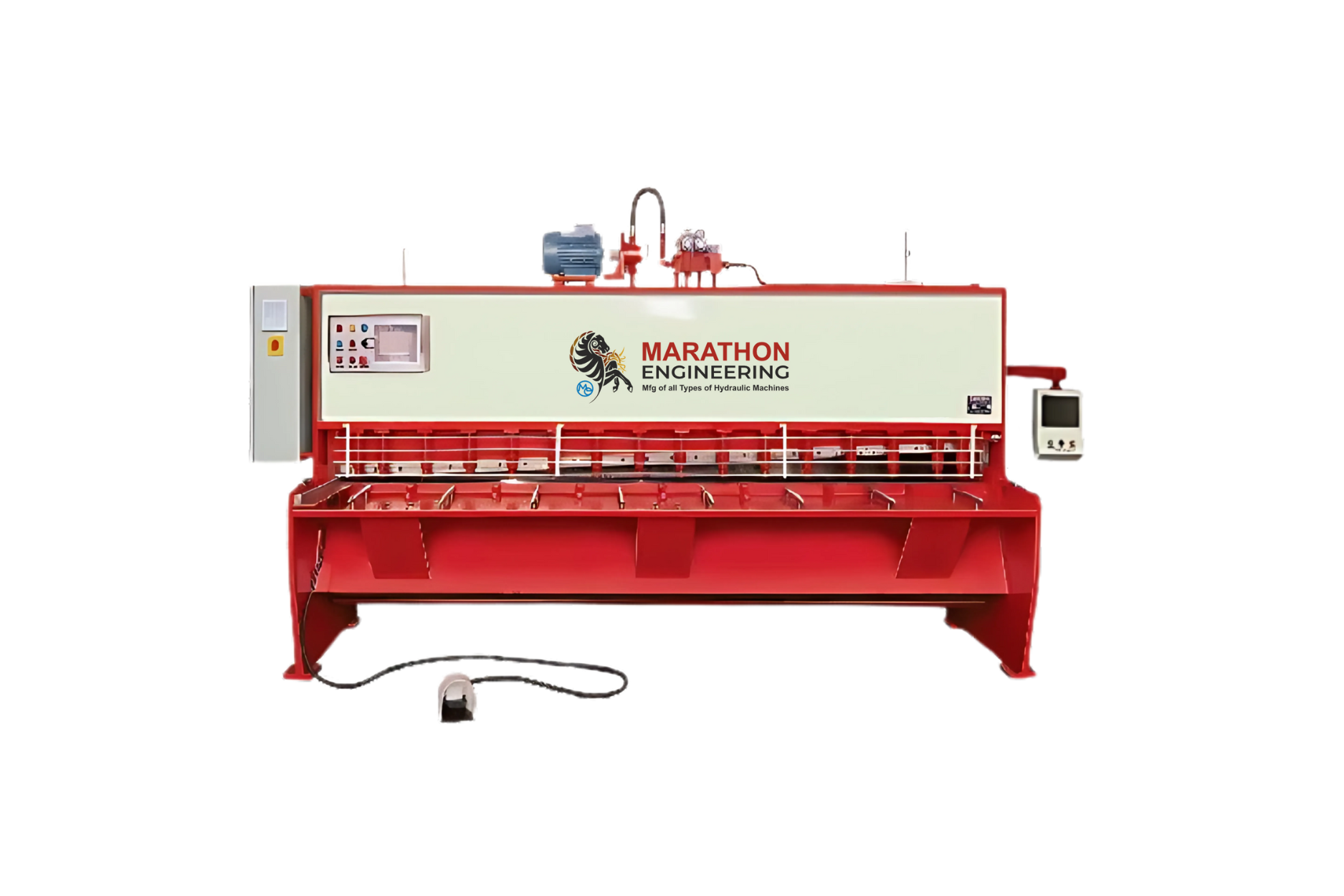

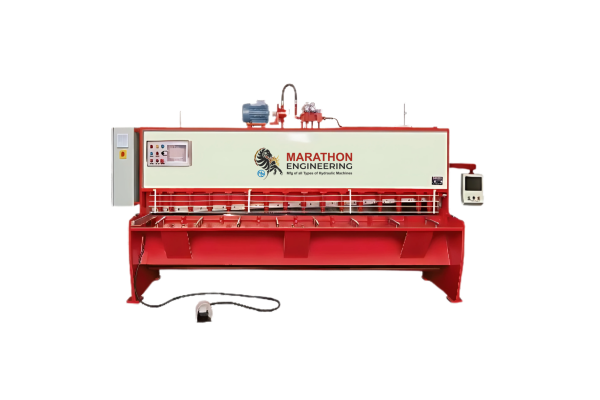

NC Hydraulic Shearing Machine

Our NC Hydraulic Shearing Machine is designed for precision cutting with advanced Cybelec Dedicated NC Controller, ensuring smooth operation and automation. Built with a robust structure, it offers high shearing quality, low maintenance, and durability. The servo motor-operated back gauge and HIWIN Taiwan ground ballscrew provide real-time accuracy, while safety features like electro-hydraulic overload protection, emergency stop, and safety finger guard ensure user safety. With automatic rake angle adjustment, four-edge cutting blades, and adjustable strokes, it delivers efficiency for various materials, including MS, SS, aluminum, brass, and copper, in thicknesses up to 40mm. Available in multiple sizes, it is an ideal choice for industrial applications.

NC Hydraulic Shearing Machine

Overview

Our NC Hydraulic Shearing Machines are designed with the latest Cybelec Dedicated NC Controller technology, ensuring automation, precision, and efficiency. Built with a robust structure, these machines offer high shearing quality, low maintenance, and hassle-free performance. Widely used in industrial applications, they deliver accurate and smooth operation while incorporating advanced safety features.

Key Features

Advanced NC Controller

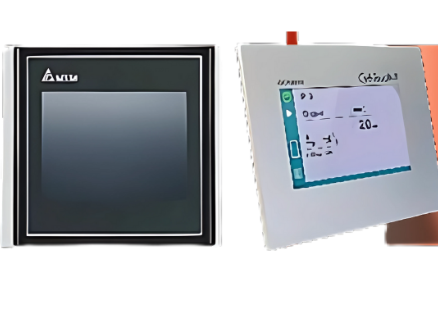

Cybelec 6 Series Controller for user-friendly operation
EasyCut Page with 200 programs and 24 sequences per program
Automatic cutting angle and length management
Built-in wizards for easy setup of axes, speeds, rake angle, blade gaps, and more

Precision Engineering

HIWIN Taiwan Ground Ballscrew for high accuracy
Servo Motor-operated Backgauge for real-time adjustments
Electro-hydraulic overload protection for enhanced safety

Technical Specifications

Parameter	Details
Shearing Length	1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 6000 / 8000 mm
Shear Material	MS / SS / Aluminium / Brass / Copper
Accuracy	± 0.1mm / mtr
Thickness Range	2mm – 40mm
Back Gauge Length	350mm / 600mm / 1000mm (customizable)

Design & Performance Enhancements

Accurate blade clearance adjustment for bur-free shearing
Adjustable rake angle based on material thickness for twist-free cuts
Motorized back gauge for easy adjustment of cutting length
Electronic stroke counter meter for faster productivity
Powerful clamping force by holding cylinders
Adjustable strokes for short piece shearing
Flexible sheet support for heavy and long plates
Major scale for small pieces at the front
Safety Features: Finger guard, emergency stop switch, and tower light with alarm

Standard Accessories

Pair of blades installed
Foot switch for convenient operation

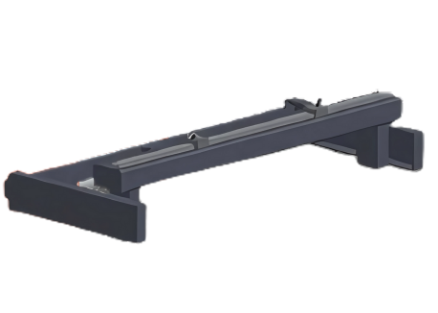

Sheet support system for handling longer and heavier sheets
Safety finger guard for user protection
