Pet Bottle Baling Machine

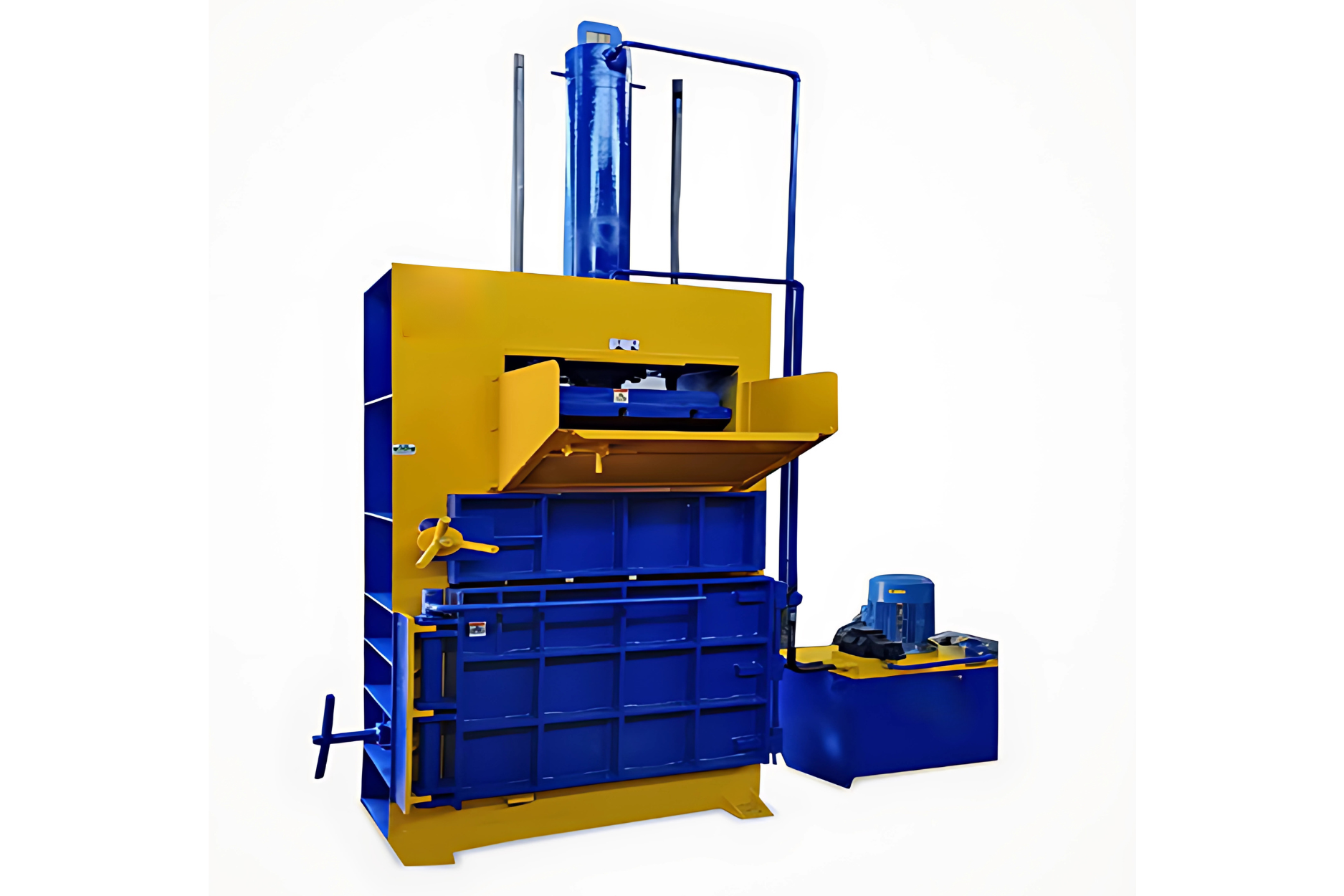

50 Ton PET Bottle Baling Press

The 50 Ton PET Bottle Baling Press is a high-performance machine designed for compressing PET bottles, plastic film, and plastic waste with precision and efficiency. It is equipped with a powerful hydraulic system for optimal performance.

Technical Specifications

Capacity:

• 50 Ton Pressure Capacity
• Single Chamber, Single Cylinder Baler Machine

Bale Details:

• Bale Size: 30″(L) x 20″(W) (in inches)
• Bale Weight: 140 to 150 kg

Chamber Details:

• Chamber Size: 30″(L) x 20″(W) x 64″(H) (in inches)

Machine Components:

• Number of Cylinders: 1 Nos.
• Number of Ties: 3 Nos.
• Number of Doors: 2 Nos.
• Cylinder Size: 170(Bore) x 205(OD) x 110(Ram) x 1300(Stroke) mm

Bale Eject System:

• Swing Plate with Screw System

Hydraulic System:

• Double Pump System
• Oil Tank Capacity: 200 Liters

Production & Operation:

• Production Rate: 20 to 25 Minutes per bale
• Operation Mode: Hand Lever Operated

Power Details:

• Electric Motor (ISI Make): 10 HP Motor, 3 Phase, 1440 RPM, 50 Hz

Additional Information:

• Day Light Gap: 64 inches
• Overall Dimensions: 84″(L) x 36″(W) x 150″(H) in inches
• Body Plate Thickness: 8mm, 12mm, 30mm
• Usage/Application: PET Bottle, Plastic Film, Plastic Bottle
