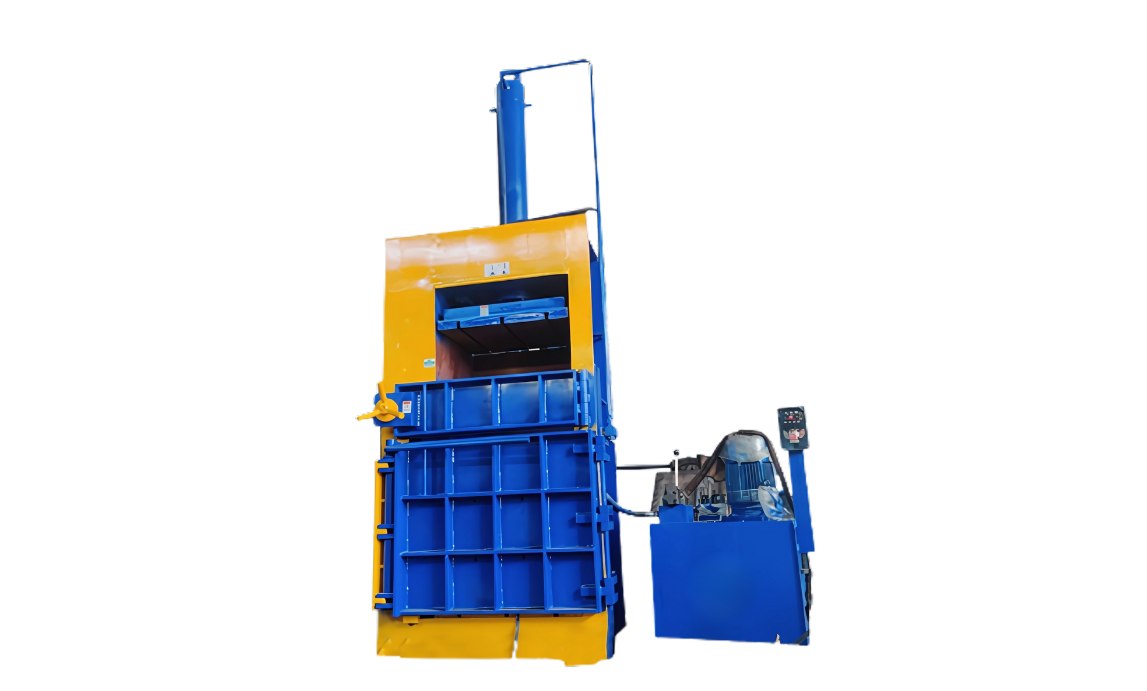

The Single Box Single Cylinder Bailing Press is a powerful and efficient solution for compressing waste materials such as PET bottles, cardboard, and plastic waste. Featuring a 32″ x 26″ x 64″ chamber size and capable of producing bales up to 200 kg, it offers reliable performance with a swing plate eject system and double pump hydraulic mechanism. With a 200L oil tank, 10 HP motor, and sturdy body plate construction, this machine ensures durability and smooth operation, making it ideal for recycling and waste management industries.
Specifications:
Capacity: 50 Ton Pressure Capacity (Single Chamber, Single Cylinder Baler Machine)
Bale Size: 32(L) x 26(W) inches
Bale Weight: PET Bottle – 150 kg / Cartoon – 200 kg
Chamber Size: 32(L) x 26(W) x 64(H) inches
Structural Details:
Number of Cylinders: 1 Nos.
Number of Ties: 3 Nos.
Number of Doors: 2 Nos.
Cylinder Size: 170(Bore) x 205(OD) x 110(Ram) x 1300(Stroke) mm
Bale Eject System: Swing Plate with Screw Systems
System & Operations:
Oil Tank Capacity: 200 liters
Production Rates: 20 to 25 minutes per cycle
Hydraulic System: Double Pump System
Day Light Gap: 64 inches
Operation: Hand Lever Operated System
Electrical Details:
Electric Motor Make (ISI): 10 HP Motor, 3-phase, 1440 RPM, 50 Hz
Additional Information:
Quotation Validity: 5 days
Delivery Time: 25 working days
Overall Dimension: 90(L) x 36(W) x 150(H) inches
Body Plate Thickness: 8mm, 12mm, 30mm
Usage/Application: Waste Paper, Corrugated Box, Cartoon Box, Plastic Waste
