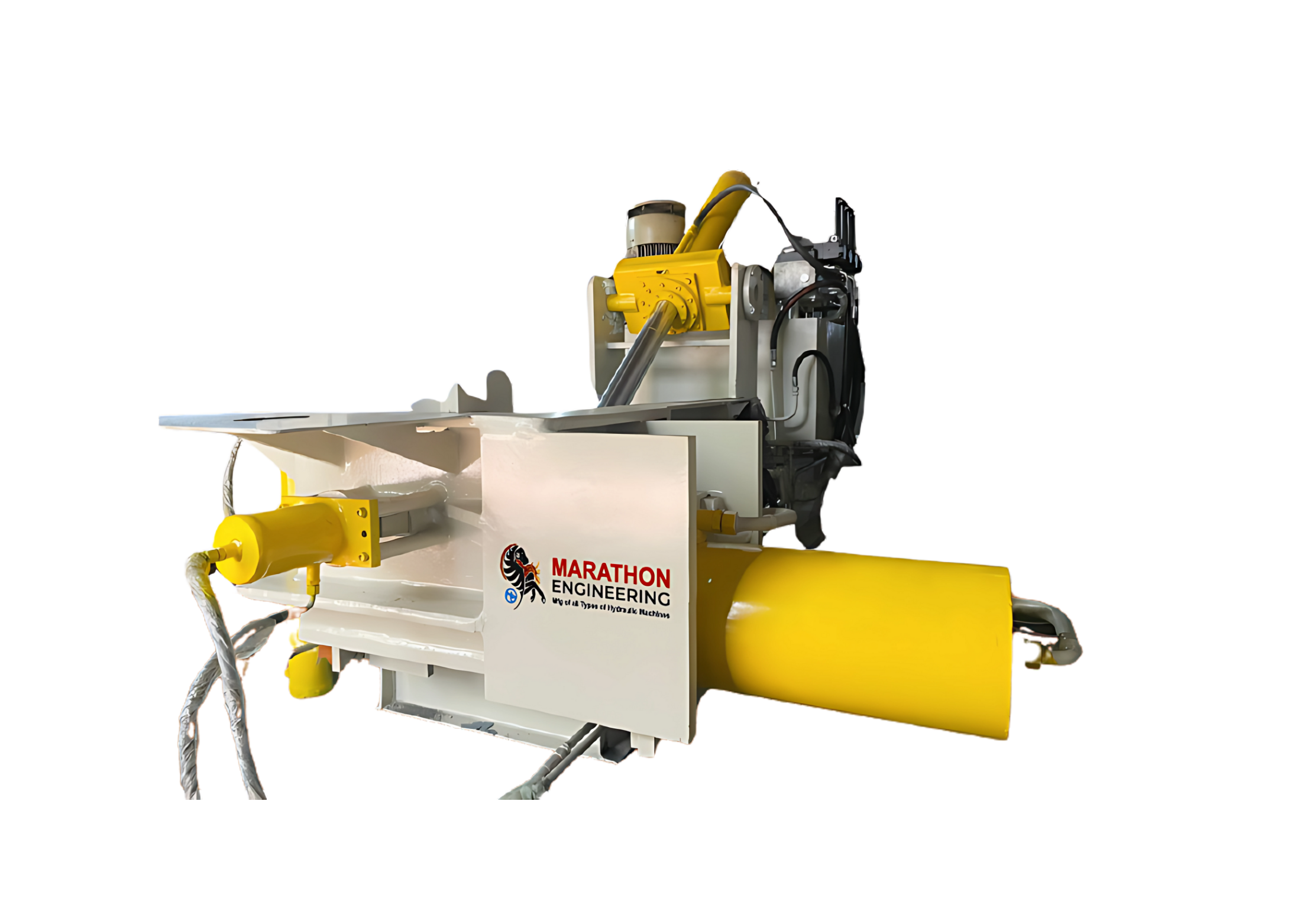

The Triple Action Scrap Metal Baler Machine is designed for efficient scrap pressing from three sides using three cylinders. It features an automatic bale ejection system and a secure door lock mechanism. Operated via PLC & HMI electric controls or a hand lever valve, it offers multiple models with varying chamber sizes, bale weights, and production capacities. The machine supports manual, semi-automatic, and fully automatic operations, ensuring flexibility based on material and labor requirements. Available in sizes ranging from 8×8 inches to 60×60 inches, it is ideal for heavy-duty metal baling applications.
Designed for scrap pressing from three sides using three cylinders.
One cylinder for auto bale ejection and one cylinder for the door lock.
PLC & HMI electric control panel operated
Hand lever valve operated
| Specification | ME – 8 X 8 | ME – 12 X 12 | ME – 14 X 14 | ME – 16 X 16 | ME – 18 X 18 |
|---|---|---|---|---|---|
| Chamber Size (HxWxL) (Inch) | 16 x 17 x 50 | 22 x 22 x 51 | 25 x 24 x 60 | 25 x 30 x 60 | 30 x 40 x 60 |
| Bale Size (HxWxL) (Inch) | 8 x 8 x 8 – 10 | 12 x 12 x 10 – 12 | 15 x 15 x 12 – 15 | 16 x 16 x 12 – 16 | 18 x 18 x 18 – 18 |
| Bale Weight (Kg) | 20-25 Kg | 25-40 Kg | 40-50 Kg | 50-60 Kg | 50-65 Kg |
| Side & Main Cylinder Capacity | 100-80 ton | 100-80 ton | 120-100 ton | 120-100 ton | 150-120 ton |
| Door, Ejection & Lock Cylinder Capacity | 60-5-5 ton | 60-7-5 ton | 60-7-5 ton | 80-10-7 ton | 100-10-7 ton |
| Electric Motor (HP) | 15 HP | 20 HP | 25 HP | 30 HP | 30 HP |
| Production per Shift (Ton) | 4-5 | 5-6 | 6-8 | 8-10 | 10-15 |
| Oil Tank Capacity (Liter) | 500 | 600 | 600 | 800 | 800 |
| Machine Weight (Approx.) | 4 Ton | 5 Ton | 6 Ton | 7 Ton | 9 Ton |
Bale production depends on pressing material and labor work.
Operation Modes: Manual / Semi-automatic / Fully-automatic
Available Machine Sizes: 8 X 8 inch to 60 X 60-inch chamber size
